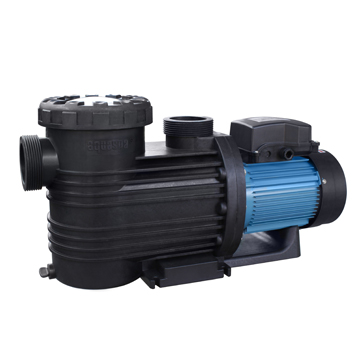

stainless pump

AB series AQUASPA professional hot spring & pool pump

-IP55 waterproof standard

-Big flow rate


-Maximum working pressure up to 6 kg/cm²

-316 stainless steel shaft

-Graphite/Ceramic mechanical seal

-Suitable for maximum hot water temperature up to 70℃

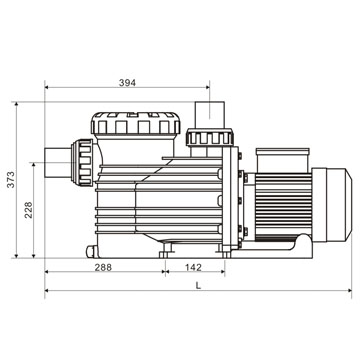

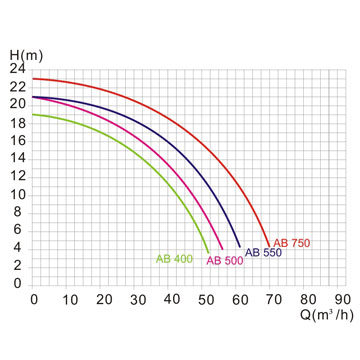

AB AB 尺寸 AB 曲线
Model AB400/AB500/AB550/AB750
Voltage 380V
Power 3.0~5.5KW
Lift max 23m
Rate of flow (max) 70m³/h
Length 750/750/770/780mm
Width 199mm
Height 373mm
